STANDARDGRAPH TEMPLATE No.1186 AXOCOMBI DIN 5

The Standardgraph drawing templates make it easy for you to draw true-to-scale furnishing plans by hand. Depending on the version, the practical helpers depict common objects from the furniture or sanitary sector.

The stencils are made of orange, transparent plastic and are equipped with ink nubs. In addition to the classic fine-lead pencil, you can also use an ink fountain pen.

Axokombi DIN 5 – standardgraph 1186 a high-quality template as an optimal aid for drawing spatial representations of isometric and dimetric perspectives. The standardgraph Axonograph complies with the requirements of DIN 5 and the Microfilm standards. The Axokombi DIN 5 has ellipses from 3 to 60 mm space axis with an axis ratio of 1:1.7 and 1:3. The high-quality stencil Axokombi DIN 5 is made of orange transparent plastic and has various ellipses in addition to the angles and scales. The Axonopgraph has ink stoppers and is suitable for ink filler / ink pen 0.7mm and fine mine pins.
standardgraph 1186 at a glance:

* high quality stencil, orange – transparent
for isometric and dimetric representation of ellipses
* Ellipses from 3 to 60 mm space axis
* Axis ratio 1:1.7 and 1:3 according to DIN 5
* with ink oppen
* suitable for ink pen 0.7 mm
* suitable for fine mine pins
* Dimensions: 225 x 85 x 1.3 mm

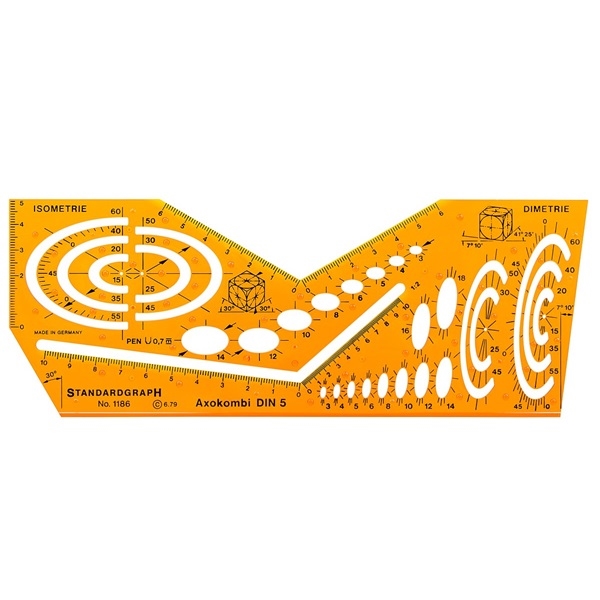

Axokombi 1186
The high-quality template is suitable for education for pupils and vocational students and has essential symbols for drawing isometric and dimetric perspectives.
